NSR Marine NGR-3000 IMO GPS

NSR’s NGR-3000 MED approved GPS Navigator is an ideal position sensor for radar, AIS, ECDIS, INS, Autopilot, Echo Sounder and all other navigation and communications equipment.


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

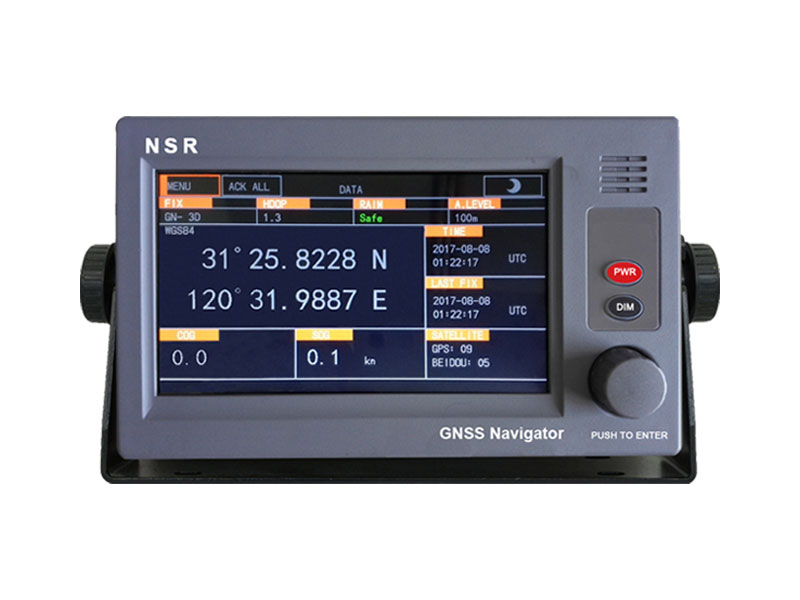

    The NGR-3000 is a completely new design IMO GPS with 7-inch touchscreen color display and antenna unit that delivers enhanced stability and precision in position fixing. The display unit is a 7-inch touchscreen colour LCD, offering optimum viewing around the clock. In order to improve position accuracy, DGPS augmentation systems are available. Dual configuration, with a second system, provides a backup and/or remote operation to ensure system availability. This new GPS navigator meet the specific requirements for alerts and interconnection with Bridge Alert Management (BAM) in IMO MSC.302 (87).

    The NSR NGR-3000 consists of an antenna and display unit and is delivered with standard 20m long antenna cable.

    Key Features

    • Large 7-inch color display, touch screen operation with adjustable contrast and brilliance
    • Storage for up to 999 waypoints and 30 routes
    • Dedicate port for BAM/INS connection
    • 3 GNSS data outputs
    • Optional DGPS beacon receiver (NDG-100) may be connected to the NGR-3000 to add DGPS function
    • Position updated every second, making steady own ship position tracking possible
    • Full compliance with IMO MSC. 112 (73), IMO MSC302 (87) and IEC 61108-1, IEC 62923-1, IEC 62923-2 performance and testing standards for GPS receiver
    • Type approval with DNV-GL (MED)
    Brochure MED Approval
