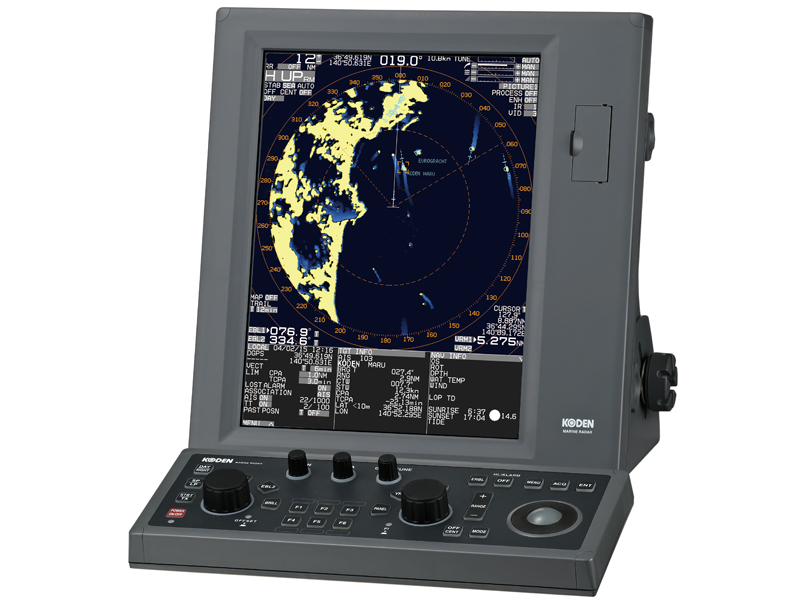

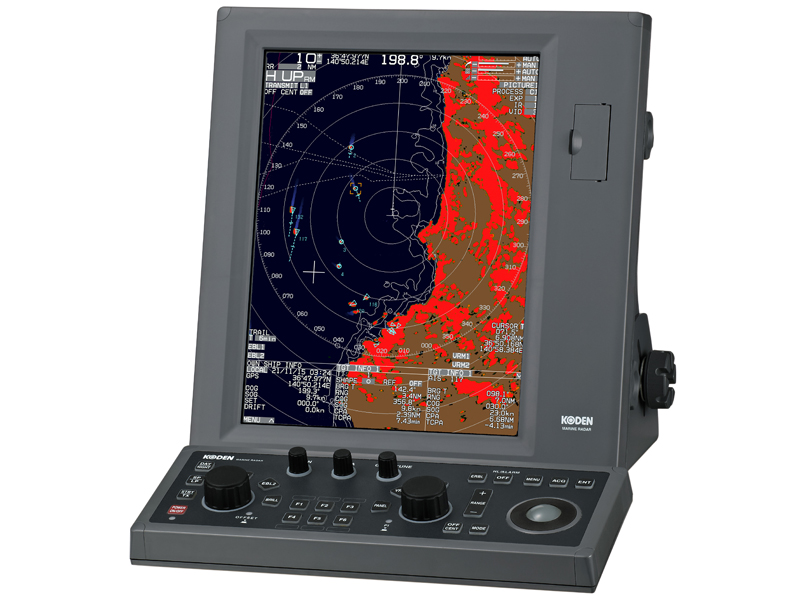

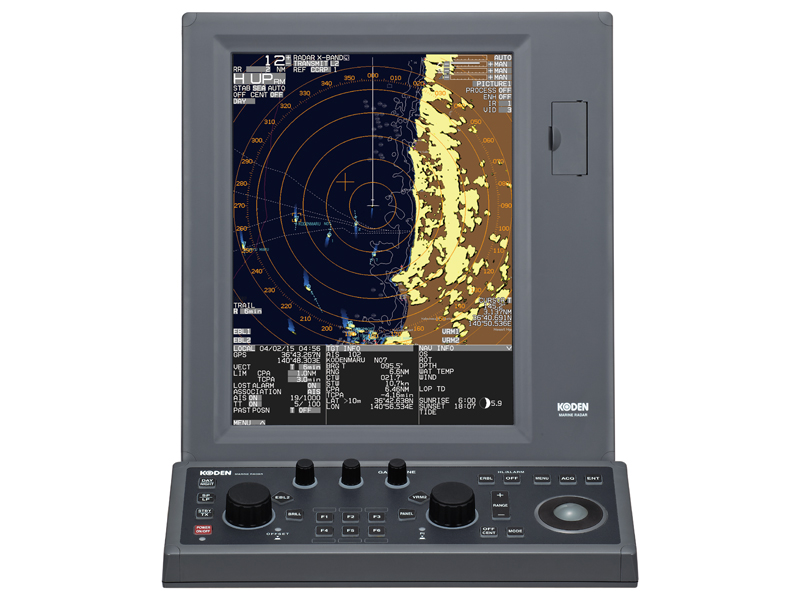

Koden MDC-5500 Radar

Koden MDC-5500 series are the latest 15″ high performance radars with radar overlay onto C-Map Charts. Features built-in Target Tracking (100 Targets) & AIS interface (1000 Targets).

I AM INTERESTED


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Categories: , , Tag:

    Target Tracking with up to 100 Targets Fitted as Standard
    ATA (Automatic Tracking Aid) tracks up to 100 targets.  Vessels being tracked are easily identified with a number and vector line.  Detailed information such as CPA (Closest Point of Approach), TCPA (Time to Closest Point of Approach), Speed, Course etc can be displayed.  If the automatic aquisition zone is set, up to 100 targets entering the zone will be automatically locked and tracked.

    1000 Target AIS Interface Fitted as Standard
    When connected to an AIS receiver, the MDC-5500 series radar displays information on up to 1000 vessels equipped with AIS transmitters.  Detailed information such as vessel name, MMSI number, Speed & Course can be displayed on up to 3 targets.

    Guard Zone
    A user definable guard zone warns of targets/vessels entering or leaving the zone.

    True Trail Function
    When connected to a heading sensor and GPS moving targets will leave a true echo trail. Stationary targets such as land and buoys leave no trail, even while your vessel is moving

    Key Features

    • 15″ Sunlight viewable display
    • Clear image with High-speed sampling in short range
    • Auto gain with simple operation
    • Trackball operation
    • Uses C-Map Max Chart SD cards

    Models

    MDC-5504

    4kW

    48NM

    3ft or 4ft Open Scanner

    MDC-5506

    6kW

    64NM

    4ft or 6ft Open Scanner

    MDC-5512

    12kW

    72NM

    4ft or 6ft Open Scanner

    MDC-5525

    25kW

    96NM

    6ft or 9ft Open Scanner

    Brochure
    Koden MDC-5500 Radar
