The NSR NVR-9000(S) Voyage data recorder, or (S)VDR, is a data recording system designed for all vessels required to comply with the IMO’s International Convention SOLAS requirements.


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    The NSR NVR-9000 (S)VDR has been designed to comply with the latest IMO regulations MSC.494(104).

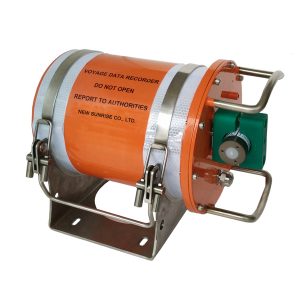

    Store data for 48 hours for both Float-free Capsule and Fixed Protective Capsule.
    Store data for 30days / 720 hours in the Data Acquisition Unit.
    Record images of two radars and two ECDIS.

    Key Features:

    Three separate channels for audio input:

    • One for up to 4 indoor microphones
    • One for up to 4 outdoor microphones
    • One for 2 VHF audio

    As a standard configuration, the below ports are provided:

    • Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
    • Digital port x 64 ch (DEU)
    • Analog port x 8 ch (DEU)

    PC software and Phone APP are available for playback and realtime monitoring

    CCS type approval

    DNV-GL type approval

    RS type approval.

    VR type approval

    Brochure NVR-9000 MED Approval NVR-9000 Brochure NVR-9000S MED Approval NVR-9000S
