Intellian i6P/i6W are 60cm Reflectors Ku-band Satellite TV Antenna Systems. It is ideal for larger yachts or commercial vessels traveling across different global regions.


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    With its highly accurate satellite tracking capability, the Intellian i6P outperforms in all conditions. When equipped with Intellian’s proprietary WorldView LNB, the i6W can operate in any global coverage area without manual intervention.

    Key Features:

    • WorldView Capable
      The available i6W is equipped with Intellian’s patented WorldView LNB, which allows for complete global operation without needing to adjust the antenna or change LNB.
    • Automatic Skew Control
      The available i6P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances in regions with linear transmissions such us Europe and South America.
    • Works with All Providers
      Compatible with leading Ku-band satellite TV service providers around the world.
    • Multiple Receiver Capability
      Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module).

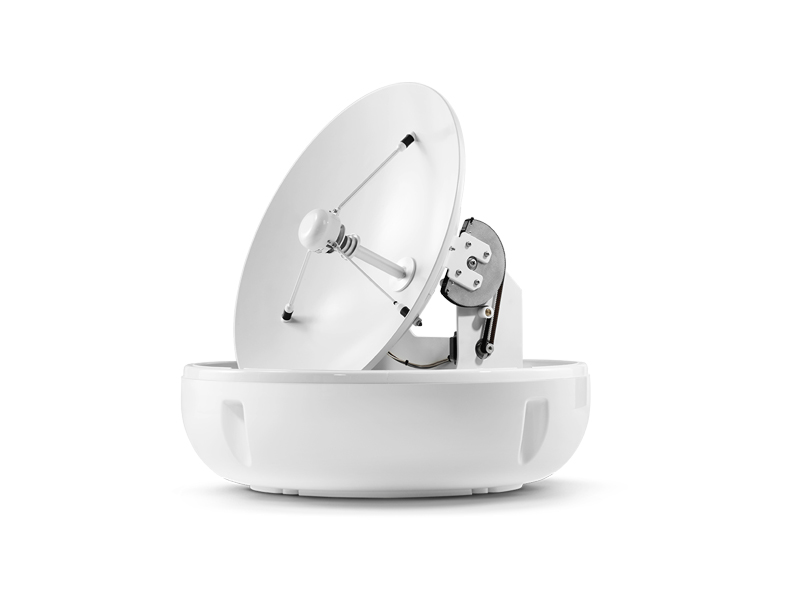

    • High Performance Antenna
      60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
      Circular or linear polarization depending on region and LNB selected
      Built-in HD module for Ku-band HD TV reception
    • iQ²: Quick&Quiet℠ Technology
      −  iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
        The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
      −  Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

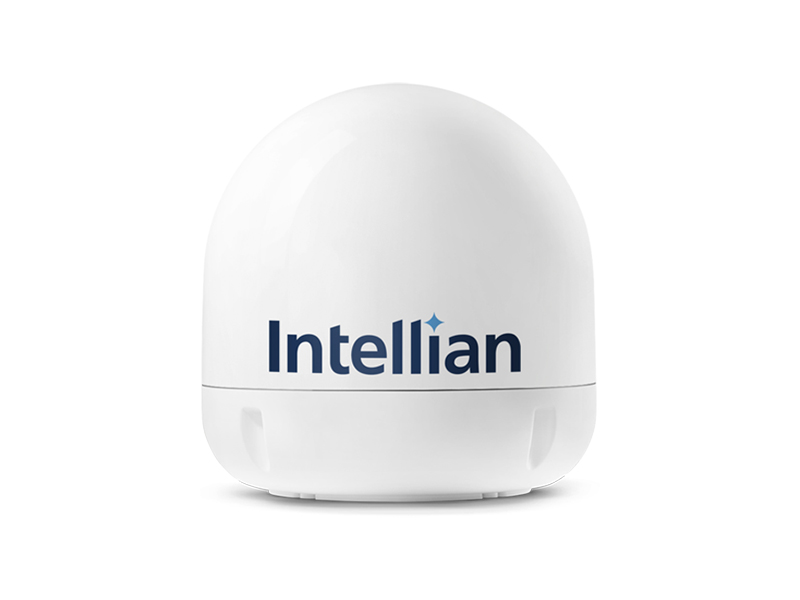

    • Radome Dimension: 70 cm x 72 cm (27.5″ x 28.3″)
    • Reflector Diameter: 60cm (23.6″)
    • Antenna Weight: 20 kg (44 lbs)
    • Min EIRP: 46 dBW
    • Elevation Range: +5˚ to +90˚
    • Polorization: Linear or Circular i6W: Linear and Circular
    • Auto Skew: i6P, i6W, i6PE
    • WorldView Capable: i6W
    Brochure i6P Brochure i6W
