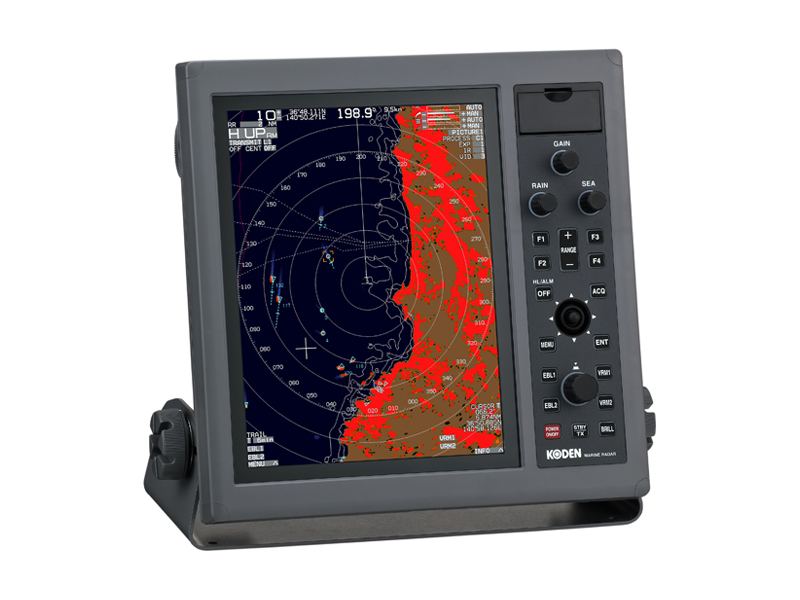

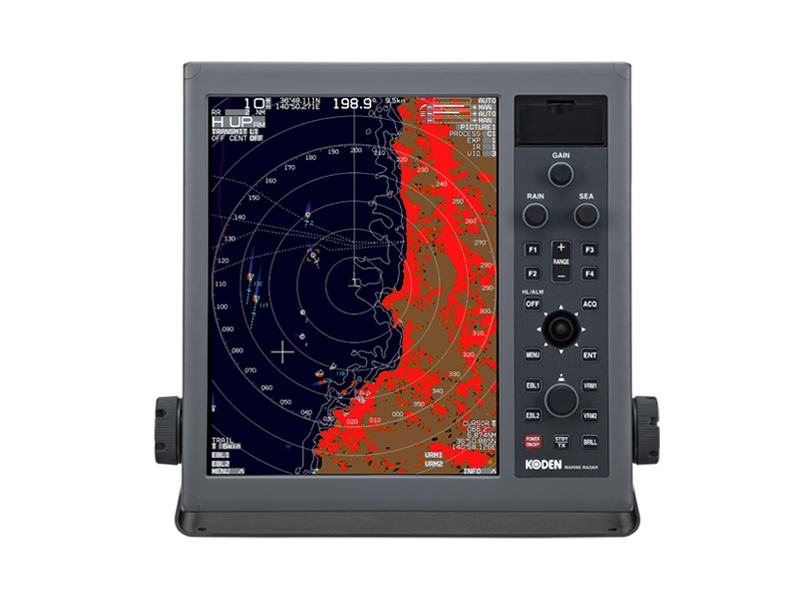

Koden MDC-5200 Radar

Koden MDC-5200 series is the latest 12.1″ high performance radars from Koden with radar overlay onto C-Map Charts.  The 1024 x 768 high resolution XGA displays offer superb clarity, truly uncommon in this class of radar.  The new anti-reflective screens ensure the high resolution display is visible under all light conditions, even bright sunlight.

I AM INTERESTED


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Categories: , , Tag:

    True Trail Function
    When connected to a heading sensor and GPS moving targets will leave a true echo trail. Stationary targets such as land and buoys leave no trail, even while your vessel is moving.

    Guard Zone
    A user definable guard zone warns of targets / vessels entering or leaving the zone

    Target Tracking with up to 100 Targets Fitted as Standard
    ATA (Automatic Tracking Aid) tracks up to 100 targets.  Vessels being tracked are easily identified with a number and vector line.  Detailed information such as CPA (Closest Point of Approach), TCPA (Time to Closest Point of Approach), Speed, Course etc can be displayed.  If the automatic aquisition zone is set, up to 100 targets entering the zone will be automatically locked and tracked.

    1000 Target AIS Interface Fitted as Standard

    When connected to an AIS receiver, the MDC-7000 series radar displays information on up to 1000 vessels equipped with AIS transmitters.  Detailed information such as vessel name, MMSI number, Speed & Course can be displayed on up to 3 targets.

    Key Features

    • Sunlight viewable 12.1″ colour display
    • Hyper Digital Processing (HDP)
    • True Trail Function
    • ATA with 100 Targets as Standard
    • 1000 Target AIS interface fitted as standard
    • Uses C-Map Max Chart SD cards for chart overlay

    Models

    MDC-5204

    4kW

    48NM

    3ft or 4ft Open Scanner

    MDC-5206

    6kW

    64NM

    4ft or 6ft Open Scanner

    MDC-5212

    12kW

    72NM

    4ft or 6ft Open Scanner

    MDC-5225

    25kW

    96NM

    6ft or 9ft Open Scanner



    Brochure
    Koden MDC-5200 Radar
