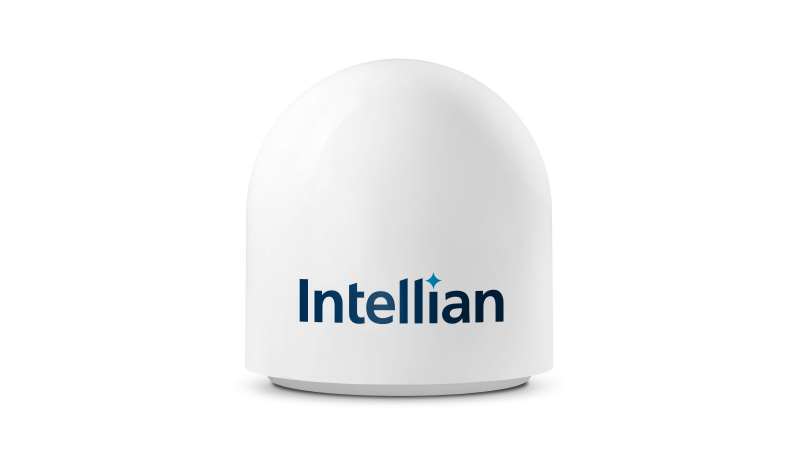

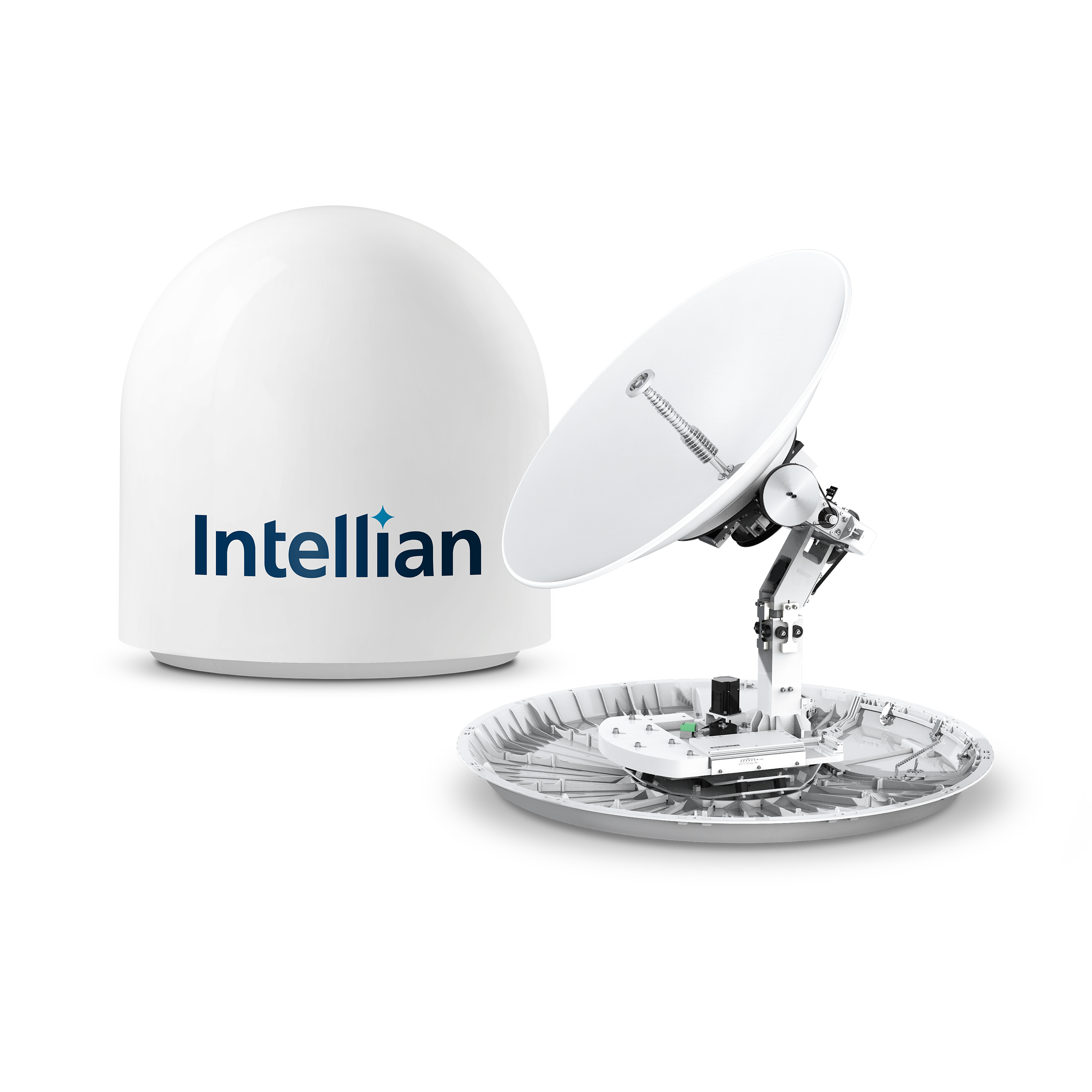

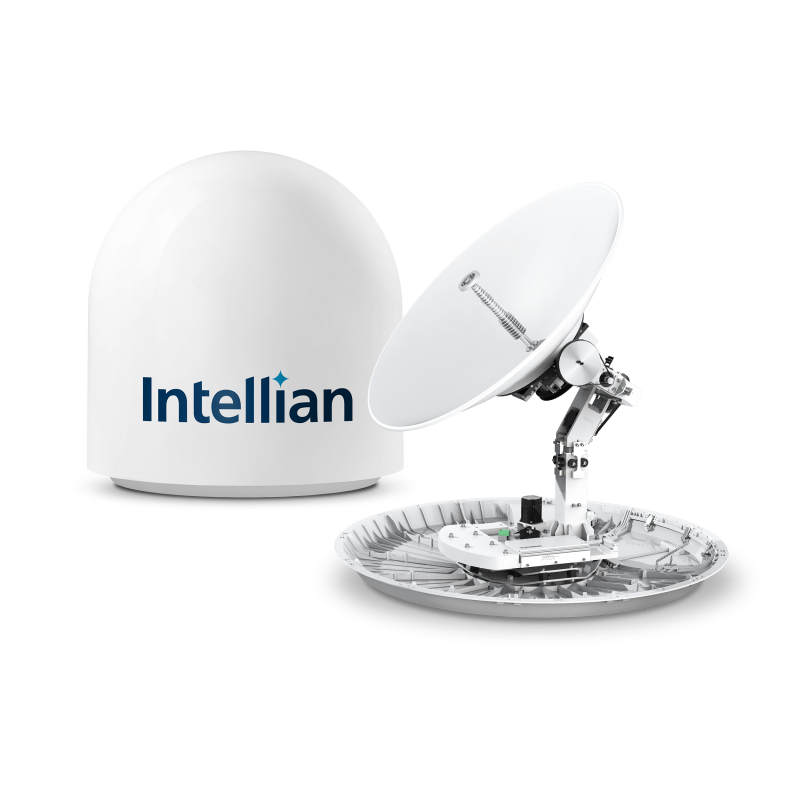

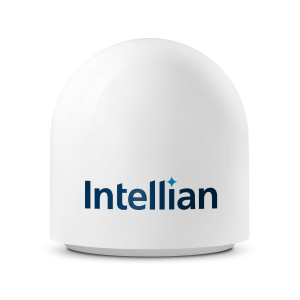

Intellian v100NX VSAT

Intellian’s v100NX is a Future proof Ku- to Ka-band convertible maritime VSAT antenna system supporting future 2.5Ghz Ka- Wideband networks with a tuned radome and reflector. The 100NX’s new operation platform enables GEO/MEO/LEO satellite tracking ensuring the antenna is ready for all future networks.

Key Features:

• Future Proof GEO/MEO/LEO
  The v100NX is designed with accurate satellite tracking performance with our proven tracking algorithm that covers GEO, MEO, and LEO constellations.
• Quick Ku- to Ka-band Conversion

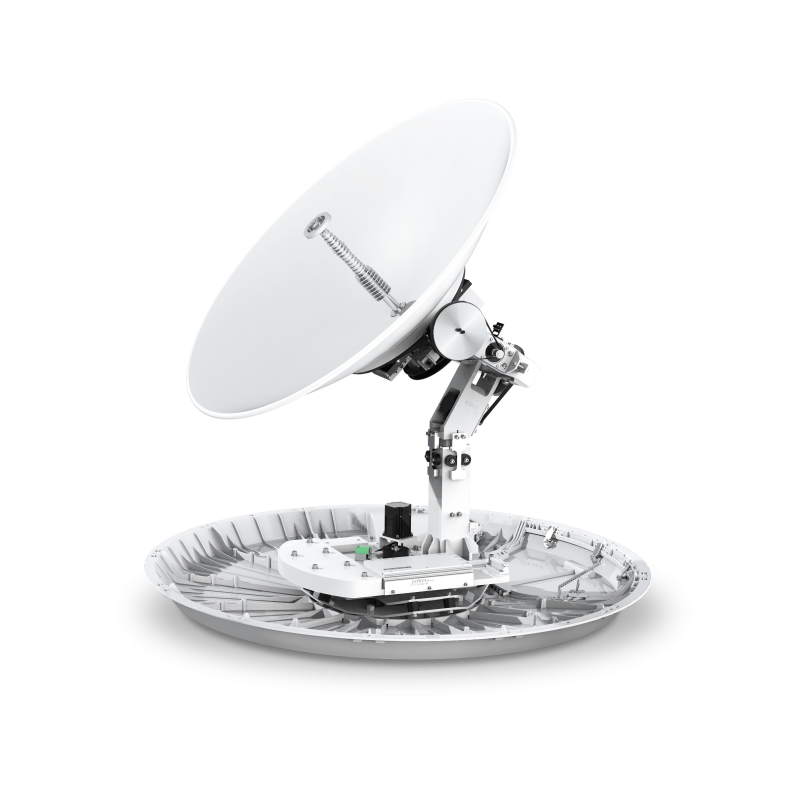

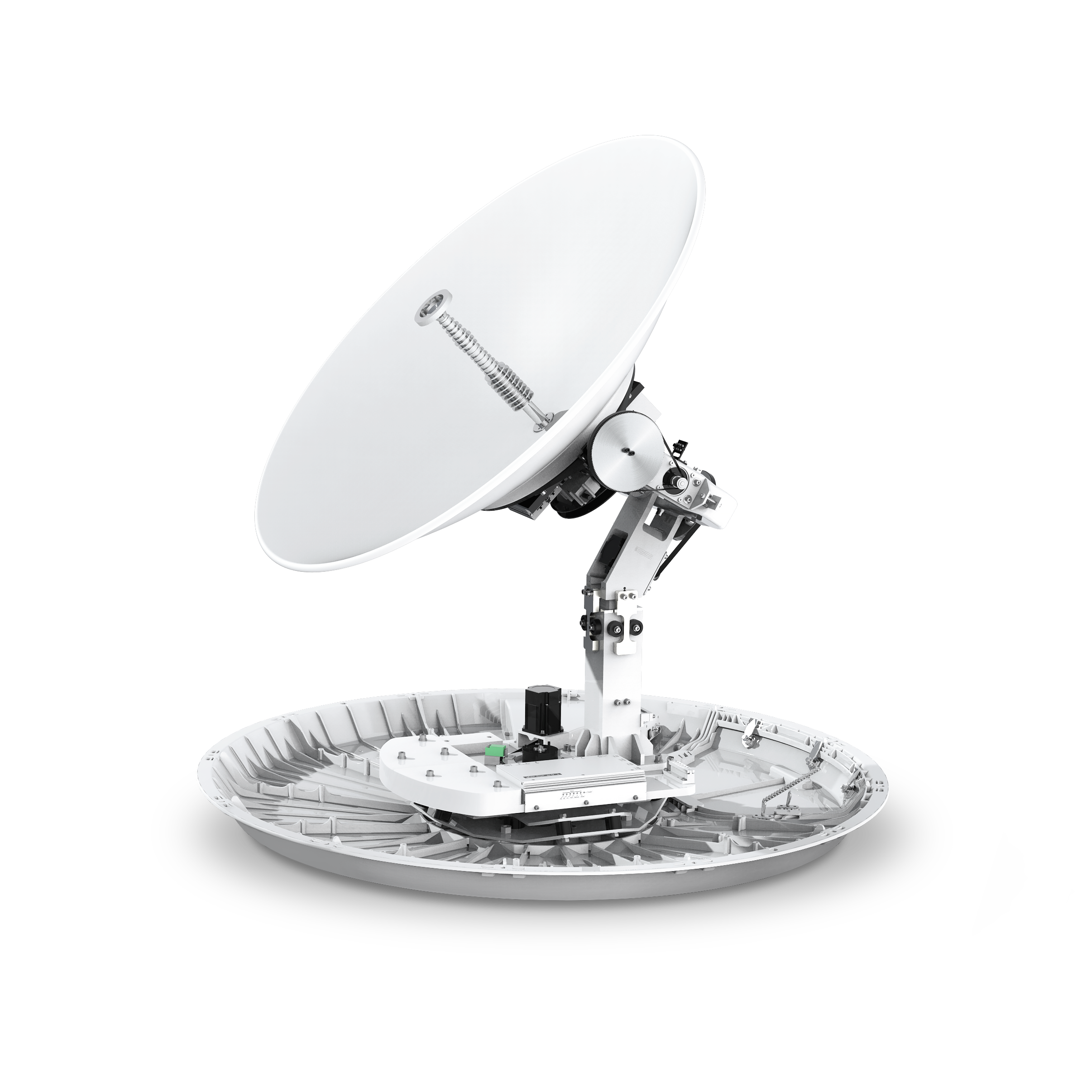

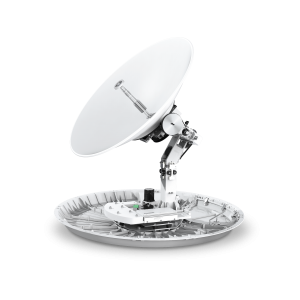

  The v100NX can be easily converted from Ku- to Ka-band operation by changing the center-mounted RF assembly.
• Higher RF Performance
  The system comes standard with an 8W BUC and can be ordered with 16W or 25W BUC (Ku-band), or 5W and 10W BUC (Ka-band) variations.
• AptusNX
  New integrated management and control software AptusNX provides a responsive web user interface, intelligent antenna diagnosis and reporting for efficient and preventative maintenance.
• Future Proof System
  − Ku-band high power upgradeable
  − Ka-band convertible
  − GX service upgradeable
  − NGSO tracking performance
• Enhanced AptusNX
  − Installation wizard provides step by step commissioning
  − Accurate and fully automated diagnosis
  − Enhanced remote monitoring and control
  − User friendly dashboard

Specifications:

• Radome Dimension: 145.8×137.9 cm (54.3×57.4 inch)

• Reflector Diameter: 105 cm (41.3 inch)
• Antenna Weight: 113 kg/ 249.1 lbs
• TX Frequency: 13.75~14.5GHz Ku-band
• RX Frequency: 10.7~12.75GHz Ku-band
• TX Gain: 42.0 dBi @ 14.25 GHz (excl. radome)
• RX Gain: 40.7dBi @ 11.7 GHz (excl.radome)
• G/T: >20.0 dB/K (min.)
