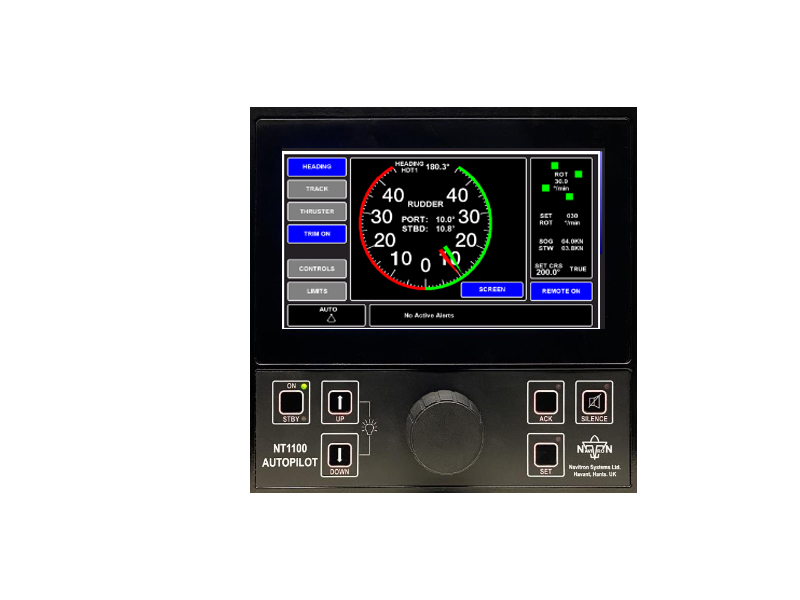

Navitron NT1100 Touchscreen Autopilot
The Navitron NT1100 Touchscreen Autopilot is fully MED Type Approved and has been designed and developed by Navitron Systems Ltd for professional use on Magnetic and/or Gyro based vessels of all types – including High Speed Craft (HSC).
Employing the latest surface mount electronics, the NT1100 is a user friendly, Adaptive Autopilot embodying Navitron’s exacting standards for build quality, product performance and reliability.
The NT1100 is suited to both new build and retrofit applications across a wide range including ocean going tugs, passenger & cargo vessels, tankers to High Speed Craft and offers traditional Navitron reliability reinforced by Adaptive Control Technology. The Adaptive Function automatically monitors and self-tunes the Autopilot Parameters to provide Optimum Steering Performance
whether operating in a Low Speed Towing mode or on a High Speed passenger ferry underway at 60 knots.
Standard scope of supply comprises the NT1100 Control Unit (suitable for panel mounting), Navitron Rudder Reference Unit and central Distribution Unit. The System is immediately compatible with a wide range of Vessel Steering Configurations including Single and Dual Solenoid Systems and Voltage (±10Vdc) or current driven (4-20mA) Steering Amplifiers
Key Features
- MED Type Approved for HSC & Conventional Vessels By DNV
- 7-inch Colour Touchscreen showing Set Course, ROT, Actual Heading, Speed Data, Rudder Angle, BAMS Alert Messages and Icons
- Tape Repeater Display showing Set Course, Actual Heading and Course Error Bar
- Permanent Heading Changes in 1, 5 & 10 degree steps etc. via Touchscreen Pads
- Operator selectable Display Mode and Illumination Control (Light characters on a dark background or vice versa)
- Optional Equipment includes: Power Steer Controls, Analogue / Digital Heading Repeaters and Rudder Indicators
