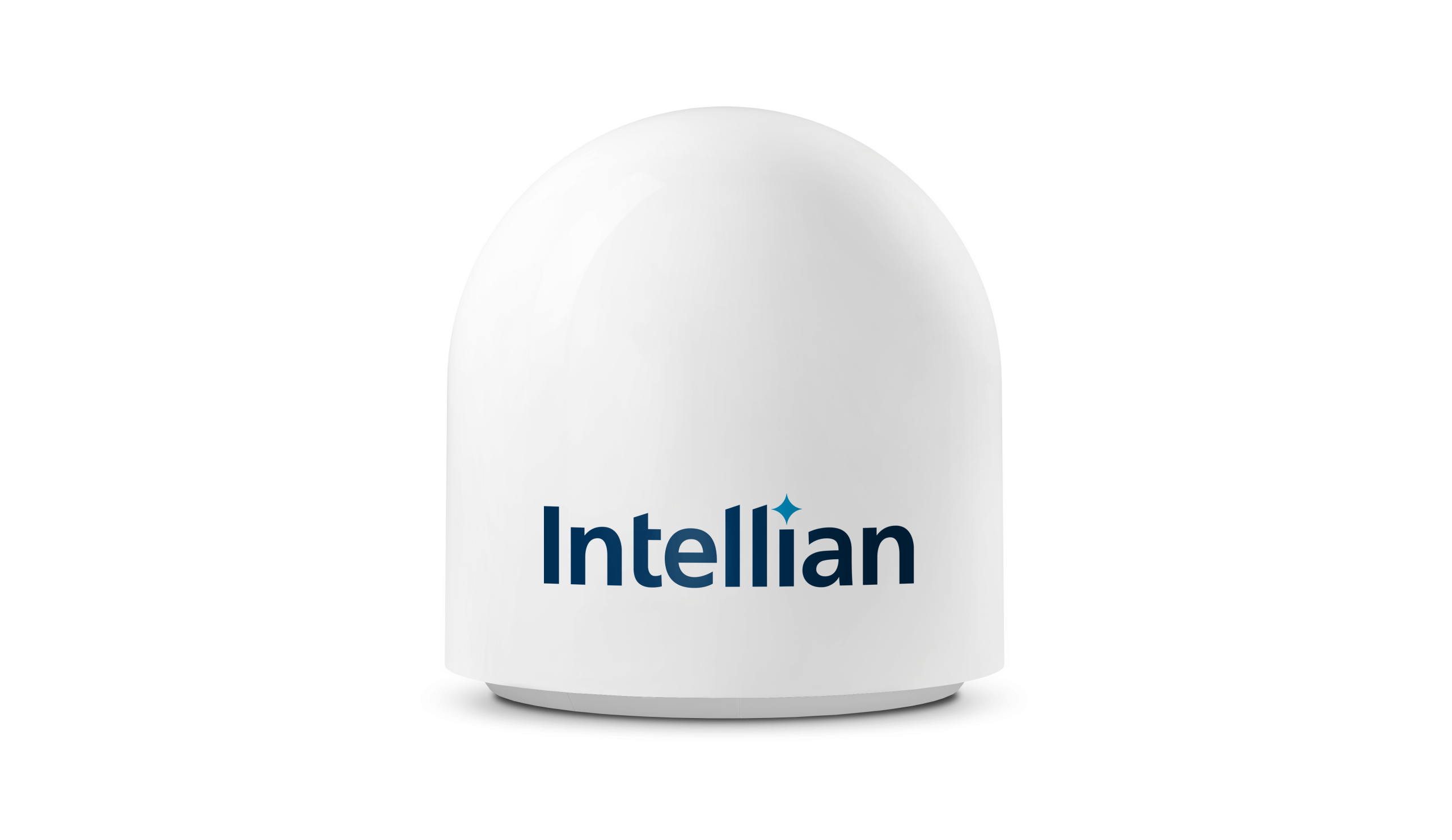

Intellian v100NX VSAT
23/12/2021
NSR NHR-1500 MF/HF
23/12/2021

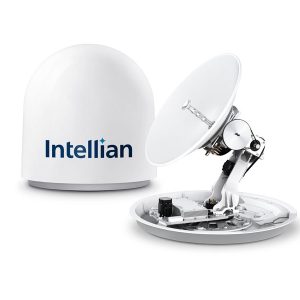

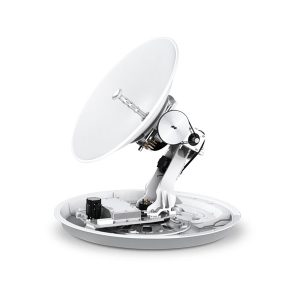

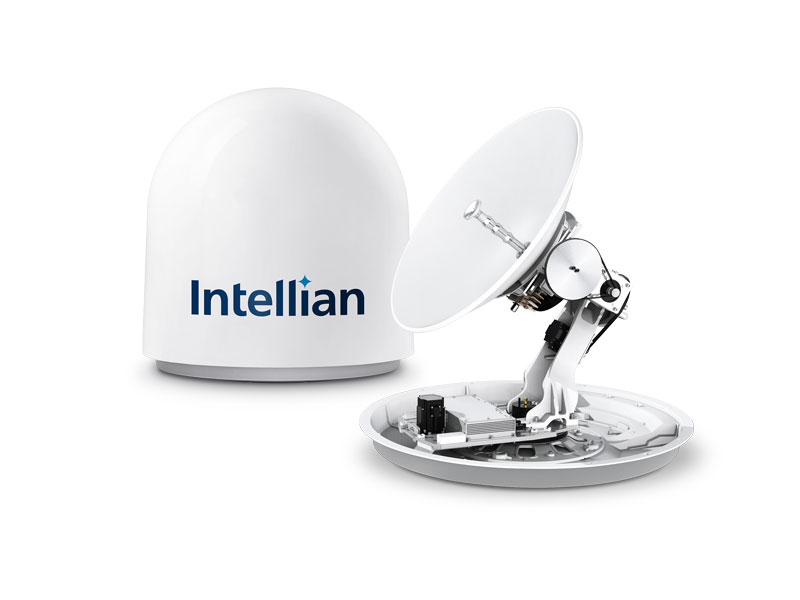

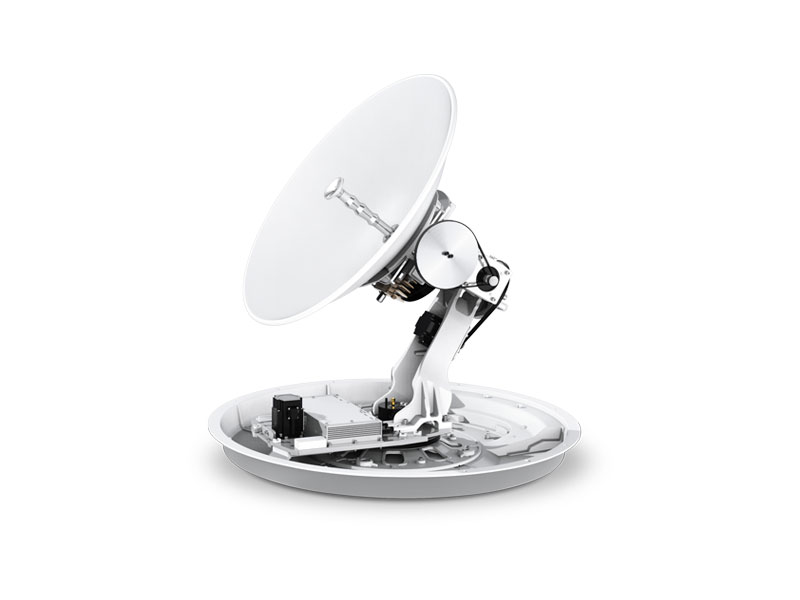

Intellian v60E VSAT
The Intellian’s v60E is a lightweight and affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 65cm class.
The v60E’s RF design delivers higher levels of performance, with a standard 6W BUC and Cross-pol only configuration, at significantly reduced pricing, providing customers with lower budget access to the quality and reliability of an Intellian product.
Key Features:
- Compact and Lightweight
Reduces freight and installation costs thereby lowering the total cost of ownership - Quick and Easy Installation
Single coax cable connection allows for quick onboard deployment. - Antenna Management Platform
Intellian’s integrated Aptus platform, provides a responsive web user interface to manage and control the antenna system. - Intelsat Flex Certified
The v60E ensures access to high-throughput satellite networks - Compact and Lightweight
− Ideal for smaller vessels which have limited space for a larger system
− Compact package reduces freight and deployment costs
− Overall lower total cost of ownership - Quick and Easy Installation
− Single Cable connection
− Pre-slung lifting straps
− Aptus step by step installation wizard to guide easy installation
Specifications:

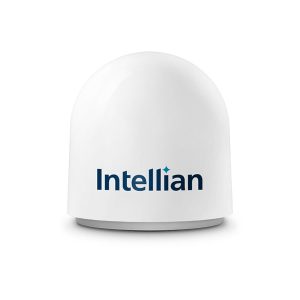

- Radome Dimension: 86×93.5 cm (33.85×36.8 inch)
- Reflector Diameter: 65cm (25.6inch)
- Antenna Weight: 42kg/ 92.6 lbs
- TX Frequency: 13.75~14.5GHz Ku-band
- RX Frequency: 10.7~12.75GHz Ku-band
- TX Gain: 37.9 dBi @ 14.25 GHz (excl. radome)
- RX Gain: 36.5 dBi @ 11.7 GHz (excl.radome)
- G/T: >15.5 dB/K (min.)
