Koden MDC-7000P IMO Radar

KODEN presents MDC-7000P series, the new X-Band Black Box type radars designed to comply with the latest performance standards of IMO and IEC. 320mm PPI color IMO display meets to requirements of SOLAS for all ships ≥10,000 GT (CAT1).

I AM INTERESTED


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Categories: , , Tag:

    IMO approved KODEN MDC-7000P Series are multi-function black box Radars offering the highest level of accuracy, stability and reliability.

    Built-in ARPA tracks up to 100 targets
    Standard ARPA Target Tracking of up to 100 targets, acquired automatically or manually.

    Built-in 900 Targets AIS Interface
    Standard fitted AIS interface. When connected to an AIS, the radar displays information on up to 900 vessels equipped with AIS transmitters. Detailed information such as Vessel Name, MMSI Number, CPA, Speed, Course etc can be displayed.

    True Trail Function
    Clearly identifies moving targets from stationary targets. The display shows exact movement of other vessels like drawing tails. Even when your range is changed, a new trail appears past drawing tails. Three types of shape are available.

    CFAR
    The CFAR function provides vastly superior semi automatic clutter suppression.  Targets remain easily visible when compared to conventional use of sea and rain clutter controls.

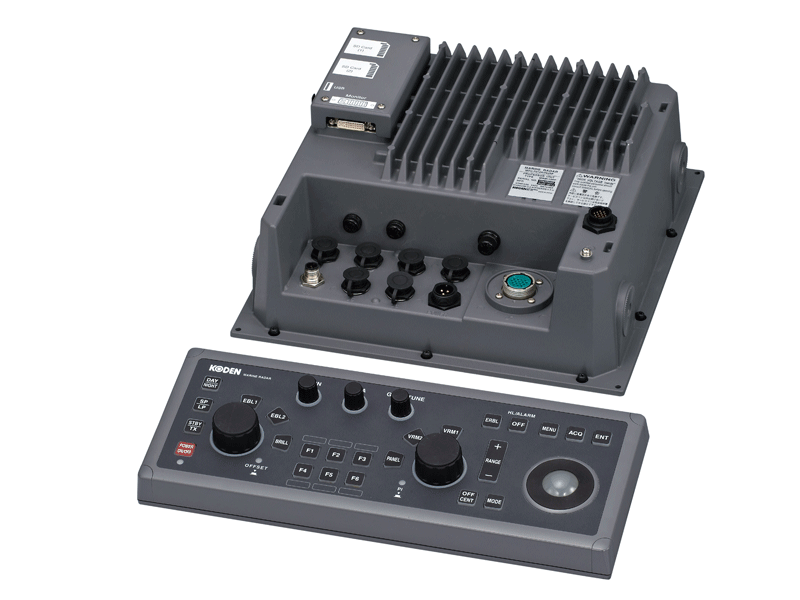

    Easy Operation
    The Control Unit features customizable function keays, trackball and rotary knobs to ensure the easy and ergonomical operation.

    Chart Underlay
    The MDC-7000P Series has the ability to display C-Map Charts as chart underlay on the radar. Please note that this function is different to approved ChartRadar – it allows C-Map chart data to be displayed but should not be used for navigation as C-Map charts are non official private charts and not ENC chart.

    Key Features

    • 23-inch (CAT1) or 19-inch (CAT2) IMO Monitors
    • Performance monitor as standard
    • Target Tracking up to 100 targets
    • Built-in AIS Interface up to 900 targets
    • True Trail Function
    • Chart Underlay

    Models

    MDC-7012P

    12 kW

    72 nm

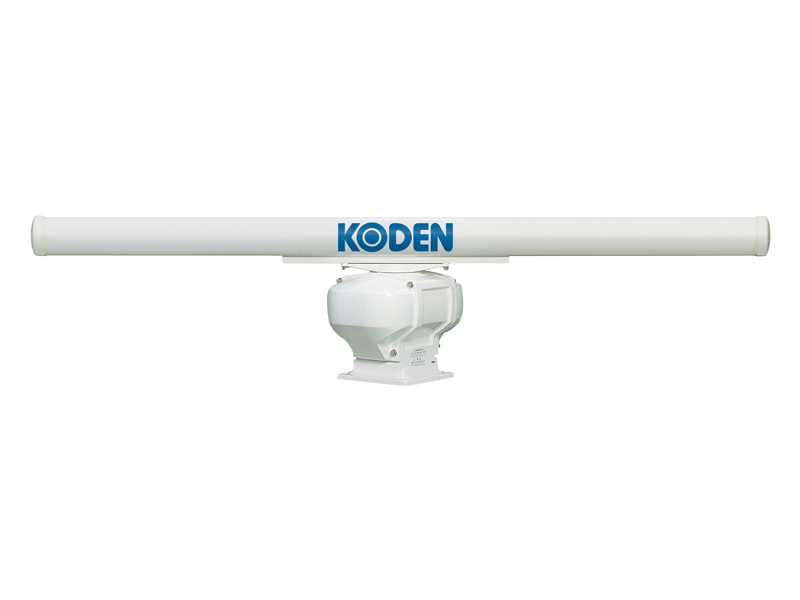

    4 or 6 ft open scanner

    MDC-7025P

    25 kW

    96 nm

    6 or 9 ft open scanner



    Brochure MED Approval
