Intellian t100W/t100Q SAT TV

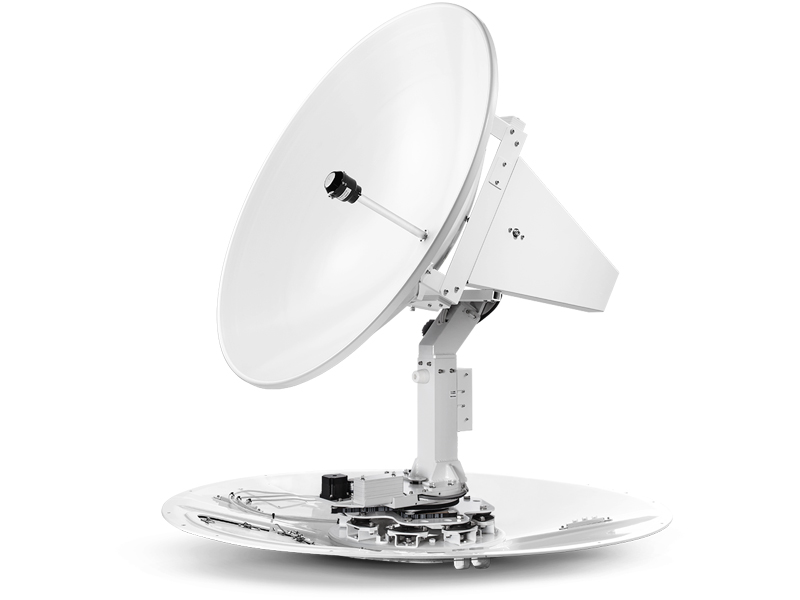

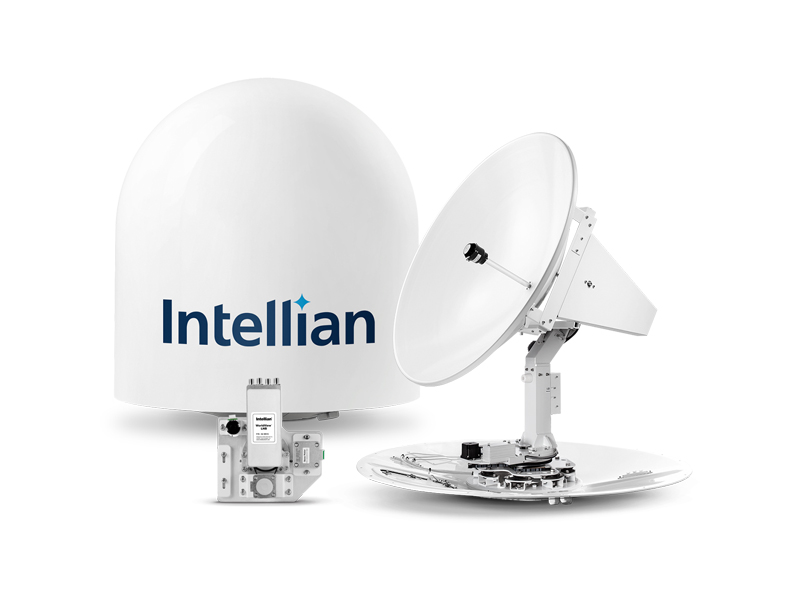

Intellian’s t100W provides outstanding performance in an 105cm (42in) reflector with the added benefits of Intellian’s proprietary WorldView Technology. This system receives SD or HD programming from any Ku-band satellite TV service around the globe without requiring LNB changes or re-wiring of the system when the vessel travels from one region to another.

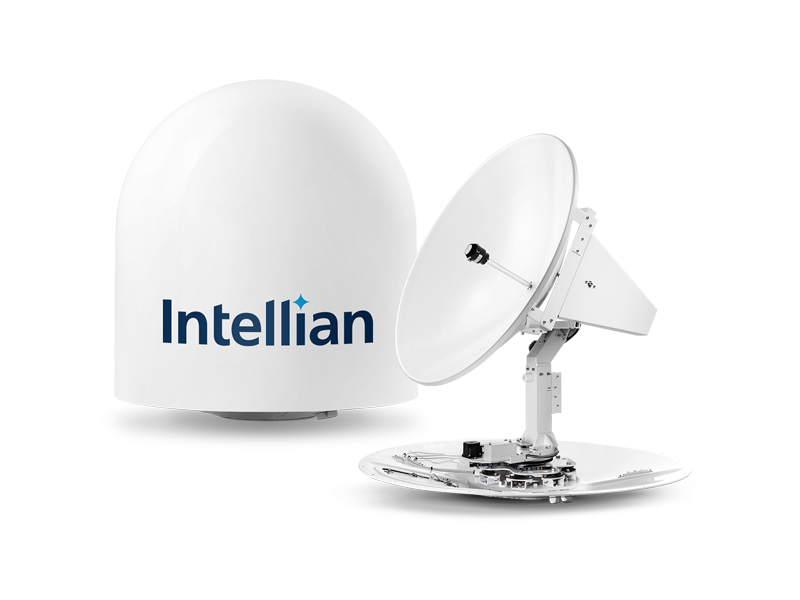

The t100Q comes with an Universal Quad LNB optimized for the European region.

Key Features:

• WorldView Capable
  WorldView LNB as standard for global operation with any satellite TV provider.
• Matching Dome Solution
  Matching Dome Solution for the highly popular 1m-class VSAT antenna family.
• Quattro Switching Module Pre-installed
  Embedded Quattro Switching Module, which intelligently distributes different tone signals to the correct ports on any legacy multi switches installed throughout the ship.
• Easy Configuration
  The t100W/t100Q includes a built-in GPS unit for faster signal acquisition and can interface with onboard heading sensors using the NMEA0183 or NMEA2000 ports.Automatic acquisition of the correct satellite with the inbuilt Global Satellite library for simple setup and easy regional switching.
• Picture Perfect
  − Ideal for larger yachts, luxury vessels and wherever symmetry and aesthetics are important on board.
  − A complementary system for the most popular 1m VSAT antennas.
  − Matching solution delivers the best possible solution: Worldwide, hands free TV entertainment and industry leading connectivity performance.
• Fully Integrated Solution
  − With its Wi-Fi enabled ACU, users can connect wirelessly to the antenna using Aptus PC.
  − Aptus offers users instant diagnostics, performance logging functions, and one touch updates of firmware and satellite library.

Specifications:

• Radome Dimension: 138 cm x 151.4 cm (54.33″ x 59.64″)
• Reflector Diameter: 105cm (41.3″)
• Antenna Weight: 93.9kg (207 lbs)
• Min EIRP: 42 dBW
• Elevation Range: -15˚ to +120˚
• Polorization: t100W: Linear and Circular t100Q: Linear
• Auto Skew: Yes
• WorldView Capable: t100W
