Compliant with IEC 60945 standard for a wide range of applications i.e ECDIS, Radar, ECS.

• Dual power supply (AC 100 V ~ 230 V, DC 24 V), automatic switching
• Brightness Control on the panel, convenient for night navigation
• Supports analogue inputs (VGA/AUDIO) and digital (DVI/HDMI) from the source device
• Glass screen for protection of the display

Key Features

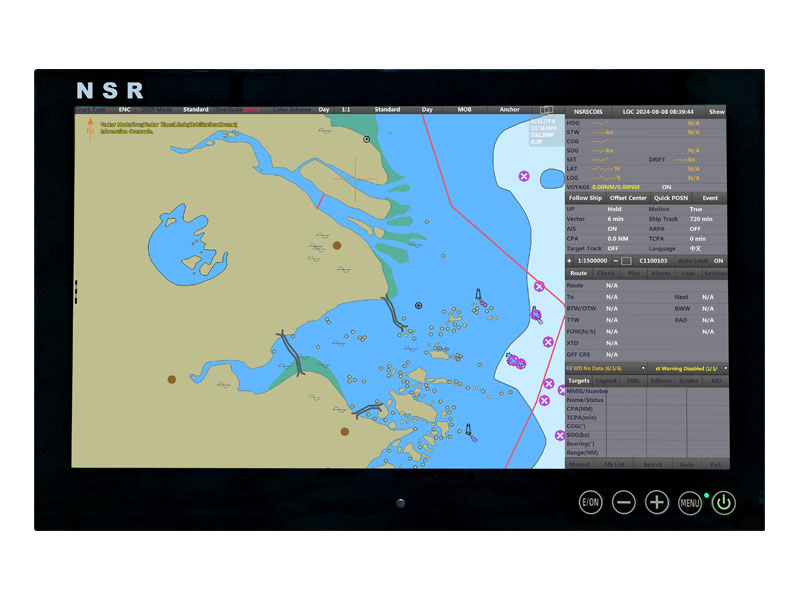

• 24-inch / 26-inch color LCD
• Effective Area: 527.0 (H) x 295.4 (V) mm / 597.8 (H)   x 336.3 (V) mm
• Resolution: HD (1920 x 1080)
• Brightness: 600 nits / 350 nits
• Contrast: 700:1
• View Angle: 170
• Interface: RGB Analog x 1, DVI-D x 1, HDMI x 1, USB x 3,   Audio Signal x 1, M/B x 1 (for restart)
• Power Supply: 100-230VAC/0.6A, 40W & 24VDC/1.5A, 45W / 100-230VAC/0.6A, 30W & 24VDC/1.5A, 30W
• Weight (without Bracket): 9.8 kg / 12.5 kg
• Environmental Conditions: Operating Temperature: -20℃ ~ +70℃ – Storage Temperature: -25℃ ~ +70℃ – Humidity: ≥90% RH (38°C)
