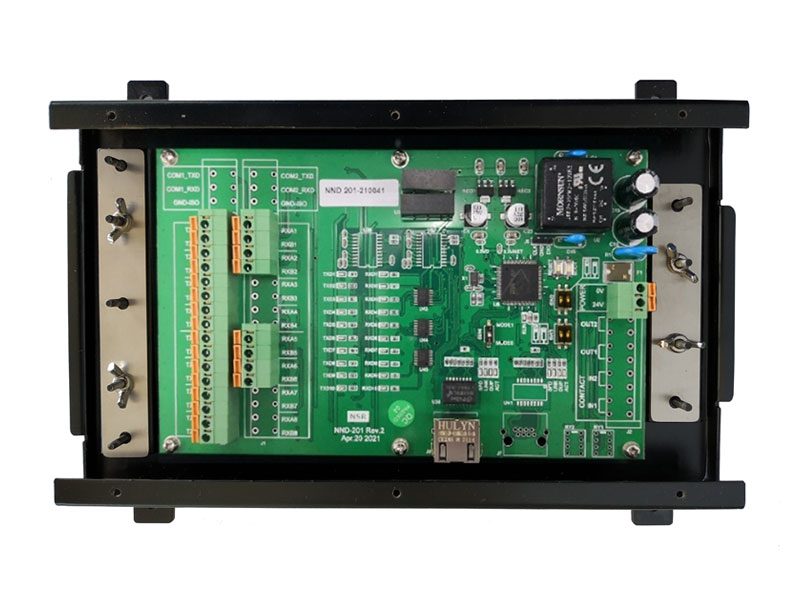

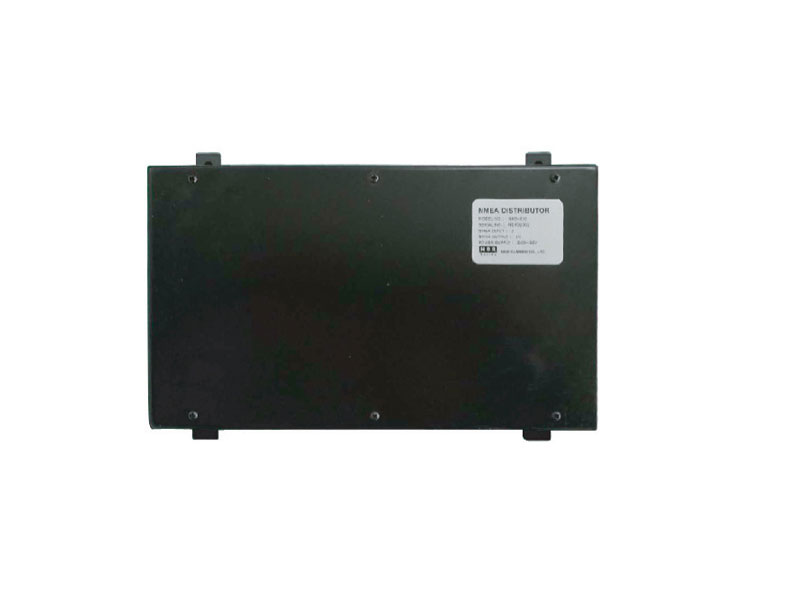

The NND-200 NMEA Distributor contains two NMEA buffers:

Buffer 1: 2 inputs/4 outputs. When used for GNSS buffer, all 4 NMEA outputs will keep on unless both GNSS inputs fail simultaneously. When both Input 1 and Input 2 are valid, only Input 1 will be selected as default.

Buffer 2: 2 inputs/4 outputs. Same as Buffer 1.

So, Buffer 1 and Buffer 2 combined, provide 8 NMEA outputs from 4 inputs.

With a built-in optical-coupled isolator, the distributor is a reliable and professional device, which can be used on board. The external equipment connected to the distributor can be safely protected from lightning surges on line.

Key Features

• The Baud Rate can be up to 38400bps from 4800bps, while the default rate is set as 4800bps
• Type of Interface: RS485/RS422
• Operation Mode: Semi-duplex
• Power Supply: DC24V, 300mA
• LED Indicators: NMEA inputs, NMEA outputs
• Working Environment: -40℃～85℃, relative humidity 5% to 95%
• Size: 35 (H) × 255 (W) ×175 (D) mm
• Standards: Conform to IEC 61162-1, IEC 61162-2, NMEA 0183 Standards
