Koden MDC-7900P IMO Radar

KODEN MDC-7900P Series complies with the new IMO and IEC regulations (IEC62388Ed.2, IEC62288Ed.2). Approved for 250mm effective according to IMO and SOLAS requirements for all ships up to 10,000 GT (CAT2)


    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Categories: , , Tag:

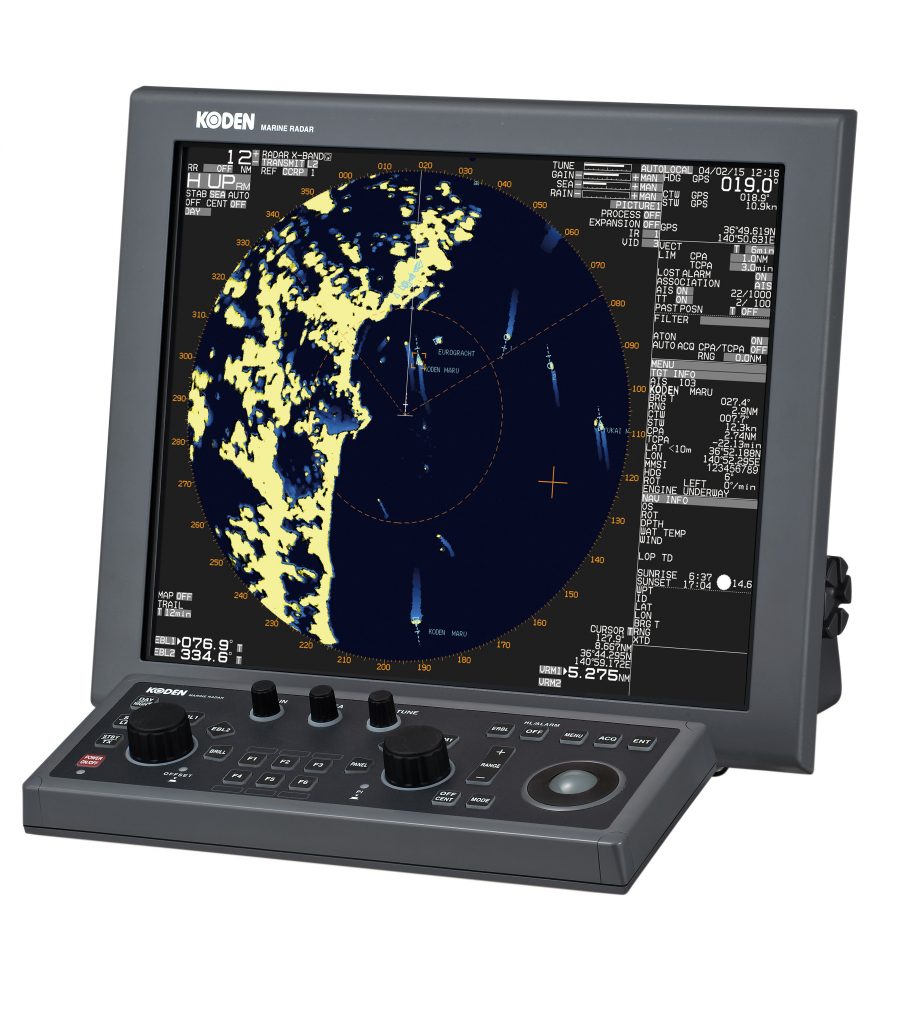

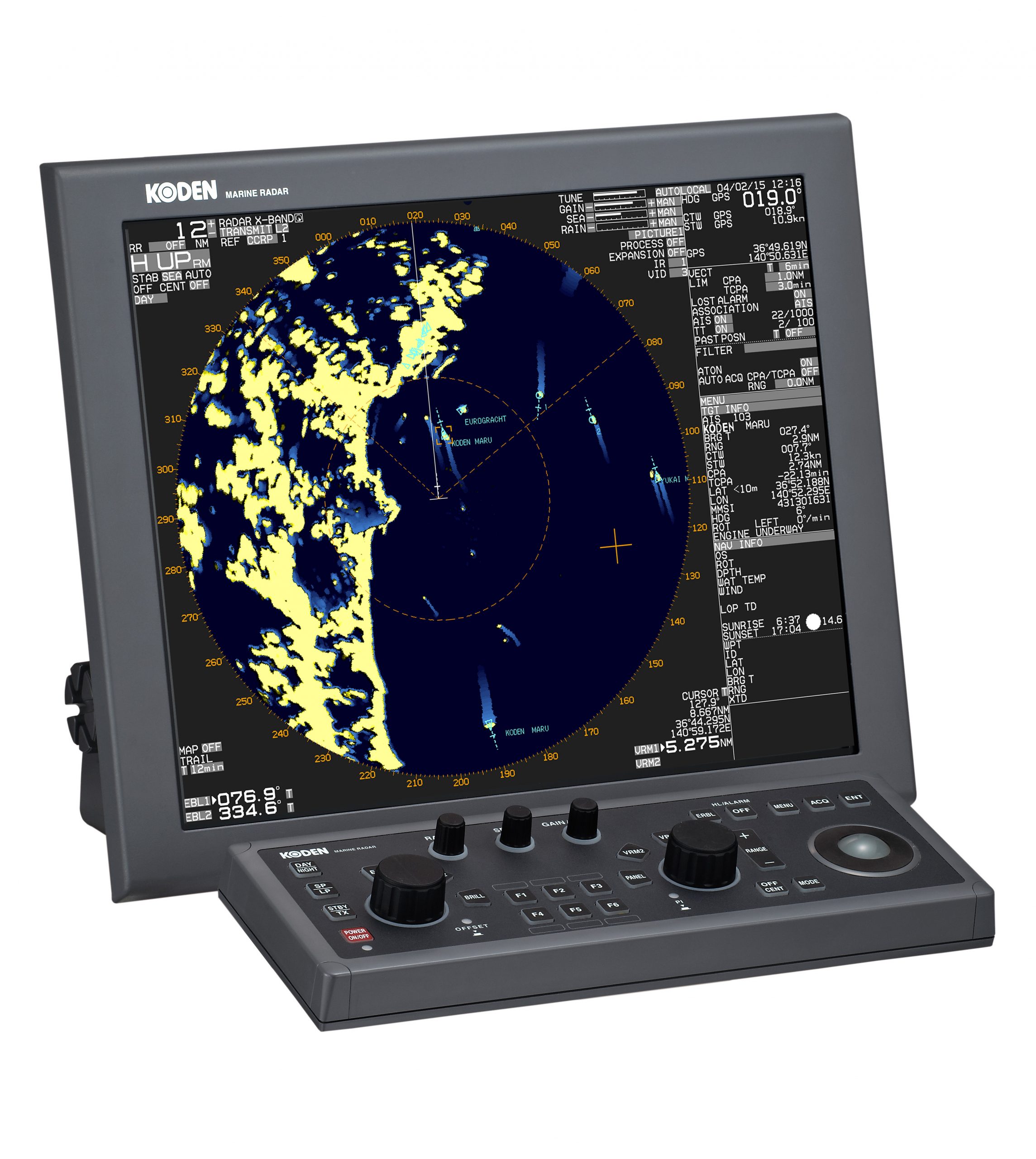

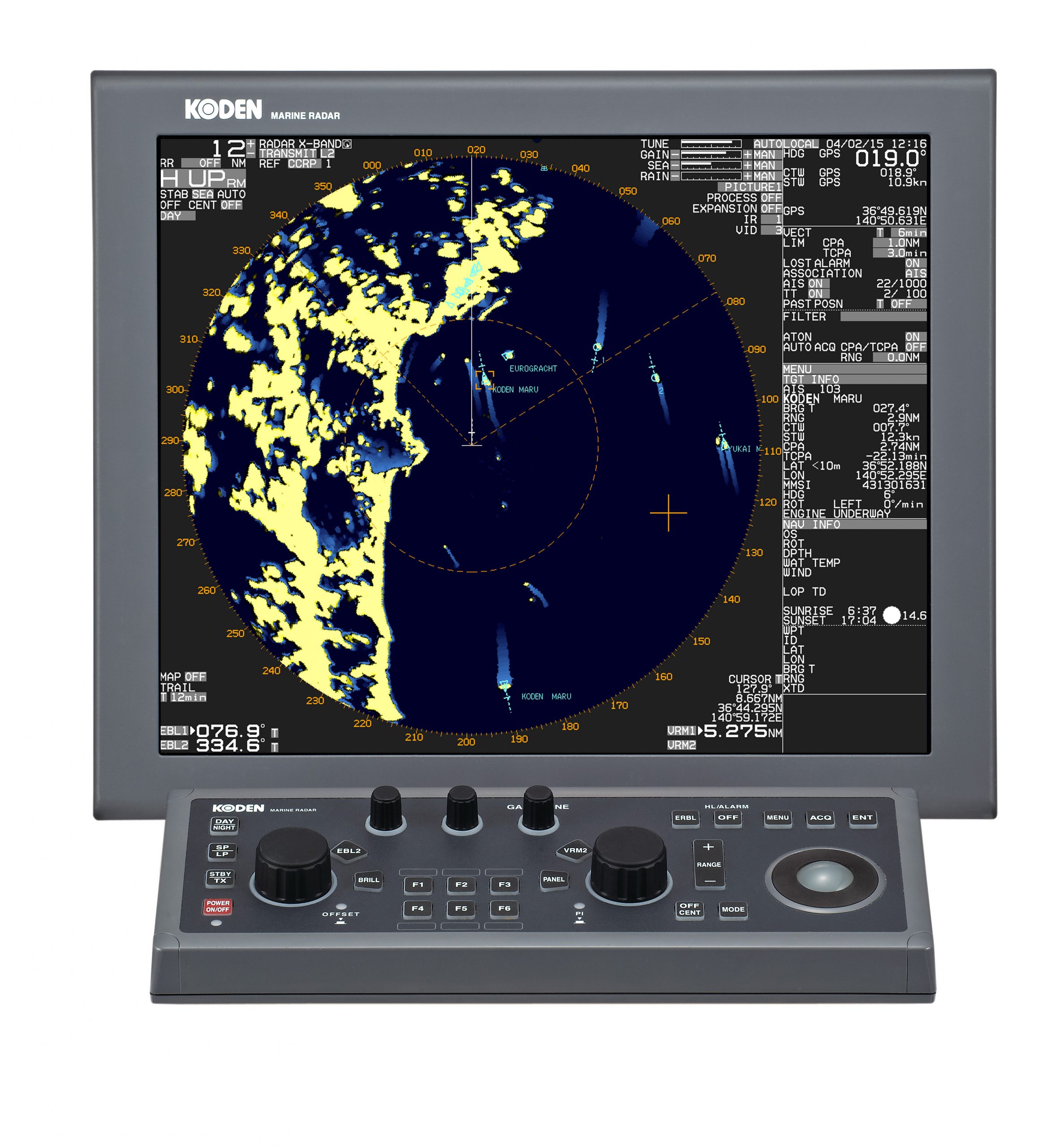

    The MDC-7900P Series provides outstanding performance on a 19-inch display with anti-reflective coating. Crystal clear image with High-speed sampling in short range.
    Auto GAIN with simple operation. Improved visibility by auto STC. Simple and easy operation by remote trackball via USB.

    Built-in ARPA tracks up to 100 targets
    TT (Target Tracking) is fitted as standard and tracks up to 100 targets.  Select auto acquisition or manual acquisition.

    Built-in 900 Targets AIS Interface
    AIS interface is fitted as standard. When connected to an AIS, the radar displays information on up to 254 vessels equipped with AIS transmitters. Detailed information such as Vessel Name, MMSI Number, CPA, Speed, Course etc can be displayed.

    True Trail Function
    Clearly identifies moving targets from stationary targets. The display shows exact movement of other vessels like drawing tails. Even when your range is changed, a new trail appears past drawing tails. Three types of shape are available.

    The CFAR function provides vastly superior semi automatic clutter suppression.  Targets remain easily visible when compared to conventional use of sea and rain clutter controls.

    Chart Underlay
    The MDC-7900P Series has the ability to display C-Map Charts as chart underlay on the radar. Please note that this function is different to approved ChartRadar – it allows C-Map chart data to be displayed but should not be used for navigation as C-Map charts are non official private charts and not ENC chart.

    Key Features

    • 19-inch Colour Display
    • Performance monitor as standard
    • Target Tracking up to 100 targets
    • Built-in AIS Interface up to 900 targets
    • True Trail Function
    • Chart Underlay


    MDC-7912P 12 kW 72 nm 4 or 6 ft open scanner
    MDC-7925P 25 kW 96 nm 6 or 9 ft open scanner


    Brochure MED Approval
