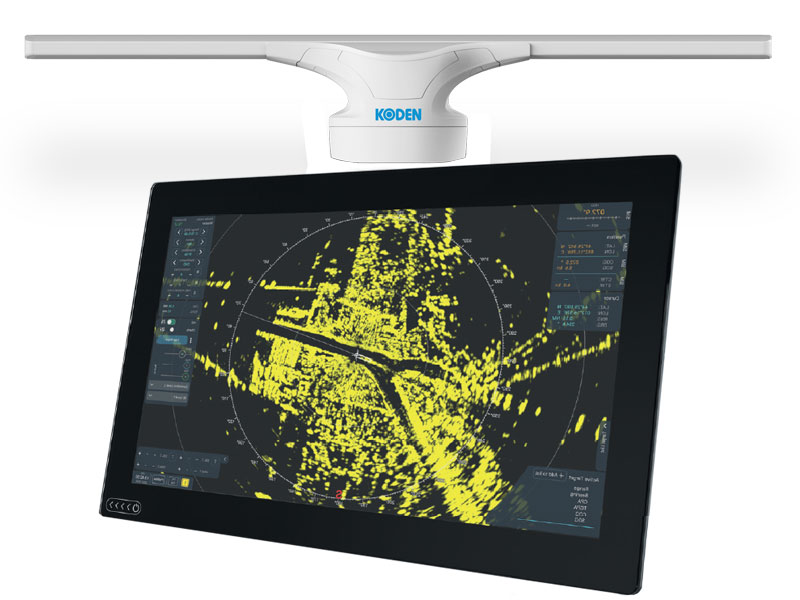

The KRS Series solid-state radar transmitter requires less maintenance leading to less downtime and significantly lower operating costs over the lifetime of the radar.

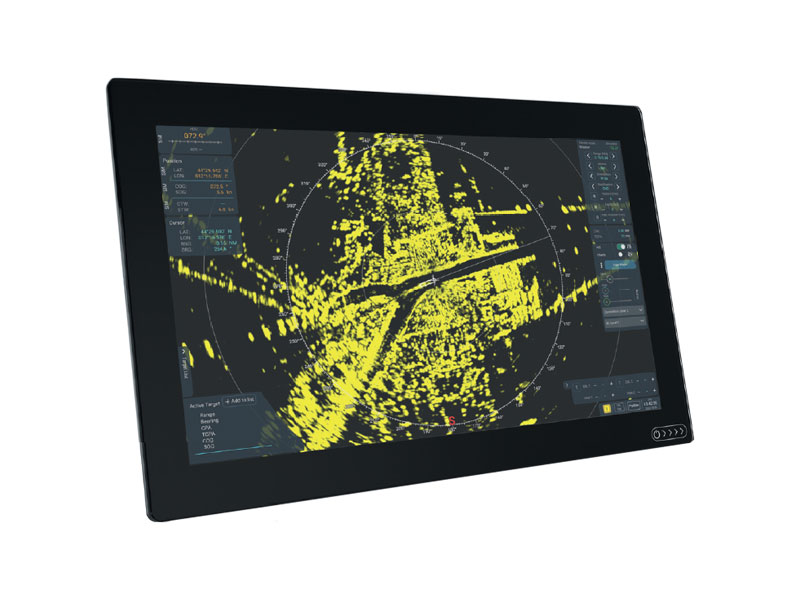

Wide range of display sizes
Lineup of 16/19/22/24 inches to optimize for bridge layout and viewing distance.

Common platform for easy maintenance

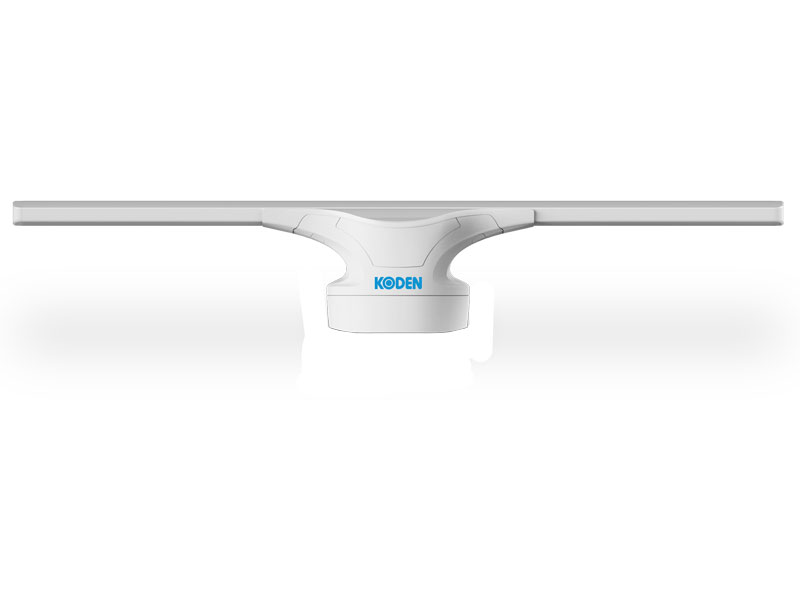

Shared scanner (RSB-111P 110W), 6 ft antenna (RSA-1SP), power converter (VCM100), and DCU enable parts commonality for efficient maintenance and spares.

Friendly to ship power and cabling plans
Supports 12/24 VDC. Standard kit includes a 25 m power cable, 25 m radar data cable, and 1 m RJ45 cable to reduce installation effort.Built-in AIS interface for displaying up to 900 targets.

External device integration and operability
Designed to interface with gyro, AIS, GNSS, speed, depth, and wind. External alarm buzzer, external card reader, and trackball enhance operation and alerts.

Minimal Start to Transmit Time
The KRS radar is ready to go when you are.
Turn on and instantly transmit without the warm-up delay found on magnetron radars.

Installation accessories and expandability
Includes size-specific sun covers, mounting hardware, gasket tape, and documentation. Networked DCU allows for future expansion (keyboard option planned).

Key Features

• 16/19/22/24-inch Display Size
• Out put power(Peak): 110W
• 0.25 to 96 NM Range
• Target Tracking up to 100 targets
• Built-in AIS Interface up to 4000 targets
• USB Trackball connection
