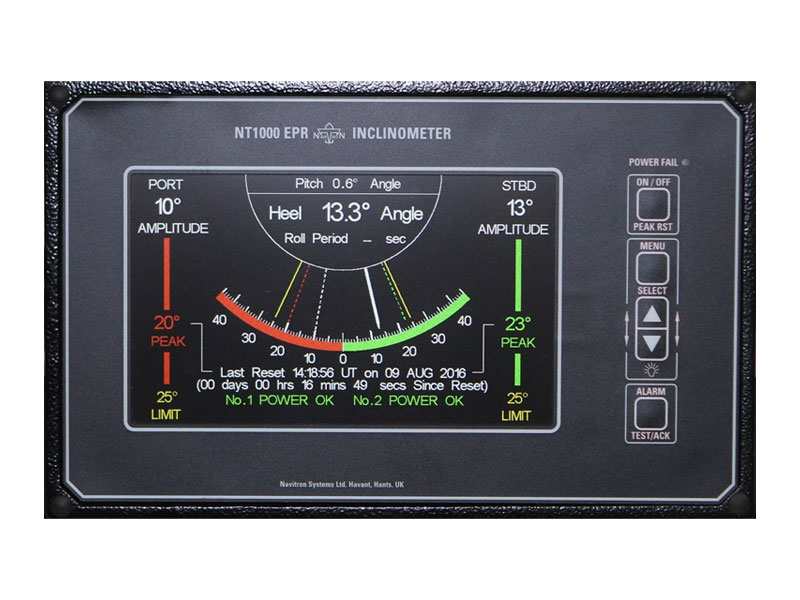

The NT1000 EPR Electronic Inclinometer provides real time – and historical (last 3 & 30 minute) – graphic Pitch & Roll information to the watch crew and serial data to VDR and BAMS etc. Accordingly, watch personnel are able to monitor vessel performance and are alerted to the development of potentially dangerous situations such as Parametric Roll and associated instability involving increasingly adverse Heel Angles and Roll Periods.

The traditional mechanical “pendulum” type of heel measuring devices can provide reasonably accurate indications of angle, but this is largely confined to static situations whereas in a seaway, pendulum mass and inertia will invariably result in significant errors. In addition to the mechanical limitations, further constraints include the inability to communicate with VDRs and BAMS (Bridge Alert Management Systems) etc. Finally, the mechanical pendulum offers no simple solution for alerting watch personnel to the development of potentially dangerous situations geared to instability based on increasingly adverse heel angles and roll periods.

Key Features

• The NT1000 EPR is fully Type Approved and may be installed with single or multiple colour display units to provide real time Pitch and Roll monitors for watch personnel in addition to recorded graphical displays or roll behavior over the last 3 minute and 30 minute periods.
• Operator adjustable alarm levels are available via the simple to use Set Up Menu and the Heel Limit Alarm can be visually and/or audibly signaled to remote locations (Masters Cabin etc.) by volt free contacts provided within a Navitron Junction Box.
• Other Set Up Parameters include Time (UT) Date and Sensor Calibration.
• The Inclinometer System operates on 24Vdc supplies (Main and Back Up) and, whether installed as a single (Master) or multi display head configuration (3 x Slave heads maximum) all interconnecting cables are supplied in 3m lengths with factory fitted plugs for simple connection to the Display Unit sockets.
• The Sensor Unit is a sealed, factory calibrated unit fitted with 3m of cable for connection to the Display Unit(s) via a 2 Entry Junction Box also supplied.
